Safety Valve

Marck Valve Automation is Air Valve Manufactures in India.They are designed to instantly release strain in the occasion of an emergency or perhaps system failure. Unlike relief valves, protection valves open completely and immediately to stay away from a disaster, instead of to manage the strain of a product.

A safety valve serves as vital fail-safe mechanism designed to automatically release excess pressure from a system, ensuring that over-pressurization is prevented. It operateby opening at a specific pressure level determined by a spring or weight, allowing the escape of fluid—whether liquid or gas—until the pressure decreases to a securlevel, after which the valve shutagain. These devices are essential for safeguarding equipment, property, and personnel, particularly in industries such as chemical processing. They are typicallinstalled in components like boilers, pressure vessels, and pipelines.

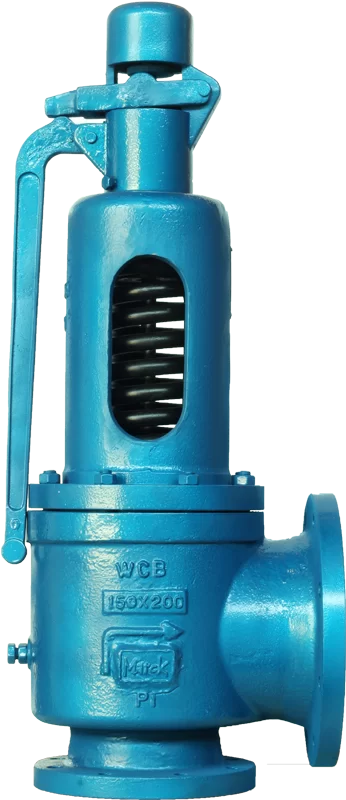

FULL LIFT TYPE SAFETY VALVE
Product Description
ASTM A 216 Gr WCB | ASTM A 351 GR. CF8
13 Cr | 18 Cr 8 Ni
SPRING STEEL | SPRING WIRE
METAL TO METAL
GENERALLY CONFORMING TO API 526 & IBR
GENERALLY CONFORMING TO API 527
WATER / STEAM / OIL
0.5 TO 6 KG/CM² FOR 150#
6 TO 25 KG/CM² FOR 150#
25 TO 45 KG/CM² FOR 300#
FLANGED END TO 150# / 300#
SCREWED END
15 MM TO 300 MM

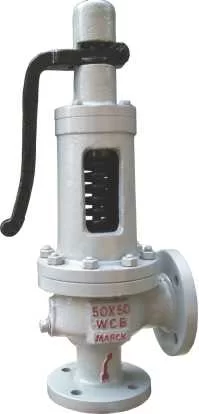

SAFETY VALVE ANGLE PATTERN HIGH LIFT TYPE BOLTED BONNET
Product Description
ASTM A 216 Gr WCB
13 Cr | 18 Cr 8 Ni
SPRING STEEL | SPRING WIRE
GENERALLY CONFORMING TO API 526 & IBR
ASME PTC 25-3 | API 527
(STEAM) 17.5 Kg/Cm² (250 Psig) AT 427°C
INLET : FLANGED TO BS 10 TABLE “H”
OUTLET : FLANGED TO BS 10 TABLE “F”
BODY : 500 Psig (35 Kg/Cm²)
25 MM TO 100 MM

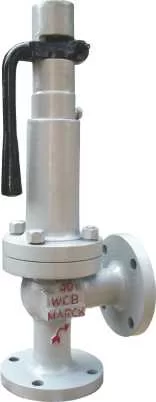

SAFETY VALVE ANGLE PATTERN ORDINARY LIFT TYPE BOLTED BONNET
Product Description
ASTM A 216 Gr WCB
13 Cr | 18 Cr 8 Ni
SPRING STEEL | SPRING WIRE
GENERALLY CONFORMING TO API 526
ASME PTC 25-3 | API 527
32 Kg/Cm² (460 Psig) AT 260°C
FLANGED TO DIN 2545
FLANGED TO BS 10 TABLE “H”
25 MM TO 200 MM

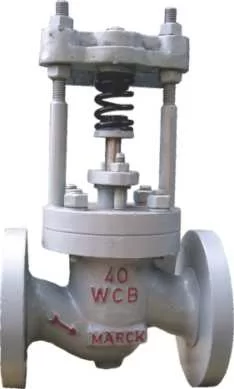

SAFETY VALVE STRAIGHT PATTERN SPRING LOADED BOLTED BONNET
Product Description
ASTM A 216 Gr WCB
13 Cr STEEL | 18 Cr 8 Ni
SPRING STEEL
MARCK | 013
MARCK | 013
14 Kg/Cm²
FLANGED TO DIN 2545
BODY : 854 Psig (60 Kg/Cm²)
25 MM TO 150 MM
