Knife Edge Gate Valve
Marck Valve Automation is is actually a prominent Knife Edge Gate Valve Manufacturer, Supplier, and Exporter in India. We’ve a very experienced staff of engineers, that constantly work to build very easy to use, secure, and rapidly operated valves.

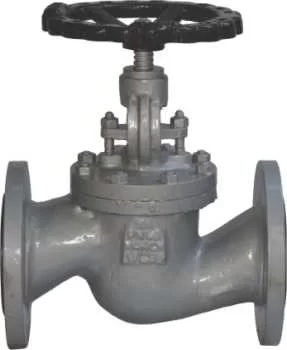

INVESTMENT CASTING GLOBE VALVE ND – 40 RATING OS &Y TYPE BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 216 Gr WCB | CF8 | CF8M | CF3 | CF3M |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | BS 1873 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF (300#) |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 854 Psig (60 Kg/Cm ²) |
| SEAT : 569 Psig (40 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 150 MM |

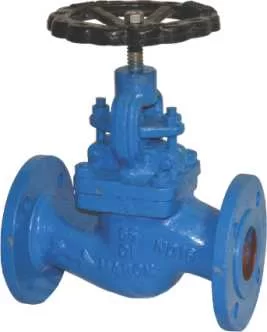

GLOBE VALVE PN 10/PN 16 RATING BOLTED BONNET
Product Description
| BODY | BONNET | IS 210 Gr FG 200 | 220 |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | GENERALLY CONFORMING TO BS 1873 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO DIN 2533 2532 FOR PN 10 |
| FLANGED TO DIN 2533 FOR PN 16 | |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 213 Psig (15 Kg/Cm ²) |
| SEAT : 142 Psig (10 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 250 MM |
GLOBE VALVE PN 40 RATING BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 351 Gr CF8 | CF8M | CF3 | CF3M |
| TRIMS | 18 Cr 8 Ni | 18 Cr 10 Ni -2 MO | CF3M OR AISI 316L |
| MFG STD | BS 1873 | DIN 3356 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO DIN 2545 |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 854 Psig (60 Kg/Cm ²) |
| SEAT : 569 Psig (40 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 400 MM |
INVESTMENT CASTING CLASS 300 GLOBE VALVE BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 216 Gr WCB | CF8 | CF8M | CF3 | CF3M |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | BS 1873 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 1100 Psig (77 Kg/Cm ²) |
| SEAT : 800 Psig (56 Kg/Cm ²) | |
| SIZE RANGE | 25 MM TO 300 MM |

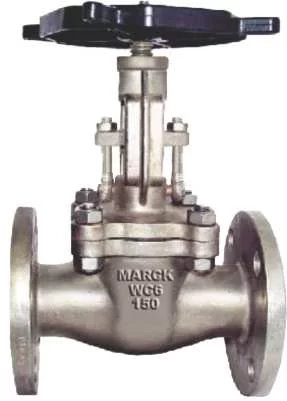

INVESTMENT CASTING CLASS 150 GLOBE VALVE BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 216 Gr WCB | CF8 | CF8M | CF3 | CF3M |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | BS 1873 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 25 MM TO 300 MM |

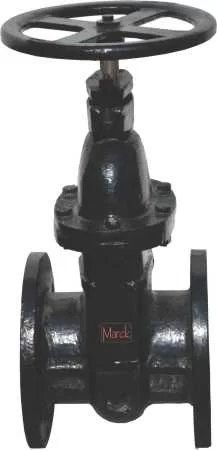

SLUICE VALVE BOLTED BONNET NON RISING SPINDLE WITH ISI MARK
Product Description
| BODY | BONNET | IS 210 Gr FG 200 | WCB |
| TRIMS | SS 410 | GUN METAL |
| MFG STD | IS 14846 |
| INSP & TEST STD | IS 14846 |
| RATING | PN 0.4 | PN 0.6 | PN 1.0 |
| ENDS | FLANGED TO IS 1538 |
| OPERATION | MANUAL | GEAR | ELECTRICAL ACTUATED |
| HYD-TEST PRESSURE | BODY : 0.6Mpa 0.9Mpa 1.5Mpa |
| SEAT : 0.4Mpa 0.6Mpa 1.0Mpa | |
| SIZE RANGE | 50 MM TO 1200 MM |

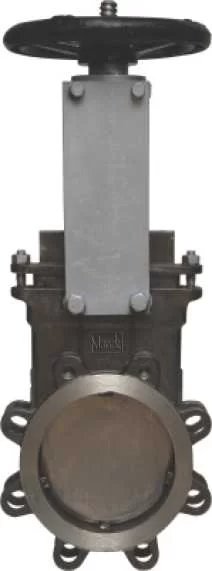

KNIFE EDGE GATE VALVE ‘WIKA’ MODEL
Product Description
| BODY | IS 210 Gr. FG 200 | WCB | WC1 | WC6 | WC9 | LCB | CF8 | CF8M | CF3 | CF3M |
| SEAT | NITRILE | METAL TO METAL |
| INSP & TEST STD | MSS SP -81 |
| KNIFE PLATE | ASTM A 351 Gr CF8 | CF8M | CI | WCB | CF3 | CF3M |
| LEAKAGE CLASS | CLASS – IV |
| ENDS | FLANGED | LUGGED TO ASME B16.5 RF (150#) |
| OPERATION | MANUAL | CHAIN WHEEL OPERATED | CYLINDER OPERATED |
| HYD-TEST PRESSURE | BODY : 156 Psig (11 Kg/Cm ²) |
| SEAT : 40 Psig (2.8 Kg/Cm ²) | |
| SIZE RANGE | 40 MM TO 750 MM |

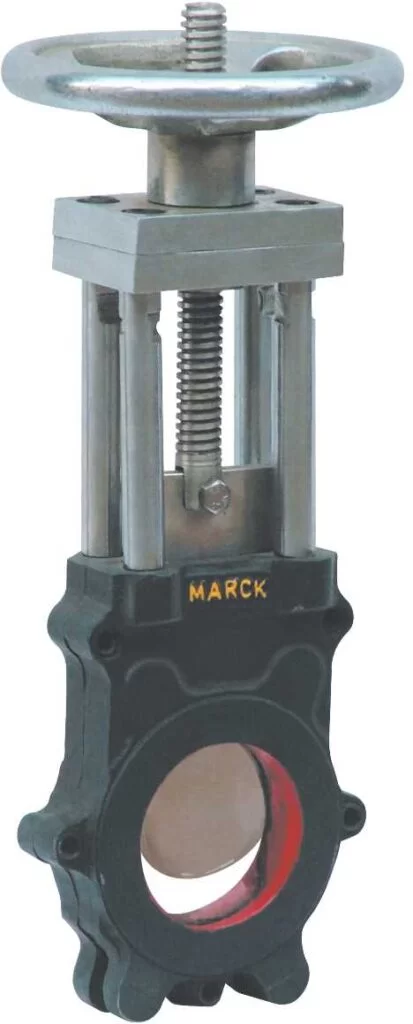

INVESTMENT CASTING SINGLE SEATED KNIFE EDGE GATE VALVE
Product Description
| BODY | ASTM A 216 Gr WCB | CF8 | CF8M | CF3 | CF3M |
| SEAT | NITRILE |
| INSP & TEST STD | MSS SP – 81 |
| KNIFE PLATE | ANSI S S 304 |
| LEAKAGE CLASS | CLASS – VI (Tight shut off) |
| ENDS | LUGGED TO ASME B 16.5 RF |
| OPERATION | MANUAL | CHAIN WHEEL OPERATED | CYLINDER OPERATED |
| HYD-TEST PRESSURE | BODY : 71 Psig (5 Kg/Cm ²) |
| SEAT : 40 Psig (2.8 Kg/Cm ²) | |
| SIZE RANGE | 50 MM TO 300 MM |
