Forged Steel Valve
Marck Valve Automation is Air Valve Manufactures in India.Forged Steel Valve – 150#, 300#, 800#, 1500#, 2500# producers a flexible assortment of Small Bore Forged Steel Gate, Check and Globe Valves. The collection comprises valves in Y-Pattern and t-pattern, and also Bellows-Sealed and Cryogenic valves .ANSI 150#, 300#, 800#, 1500#, 2500# Forged Steel Flange End Gate Valves are manufactured to meet various standards for low-pressure applications with a working pressure of up to 150, 300,800,1500,2500 PSI. They feature a wheel–shaped handle and metal-to-metal seat sealing for reliable performance. The valve‘s structure includes a closure element, known as a wedge or disc, which regulates the flow of process fluids through the valve body, allowing or restricting passage as needed.
FORGED CARBON STEEL 3 PIECE DESIGN BALL VALVE F/E CLASS 150 FLOATING BALL FULL / REDUCED PORT
Product Description
| BODY | ASTM A 105 |
| STEM | 13 Cr |
| MFG STD | API 602 | BS 5352 |
| INSP & TEST STD | API 598 | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF (150#) |
| HYD-TEST PRESSURE | BODY : 30 Kg/cm² |
| SEAT : 21 Kg/cm² | |
| SIZE RANGE | 15 MM TO 50 MM |

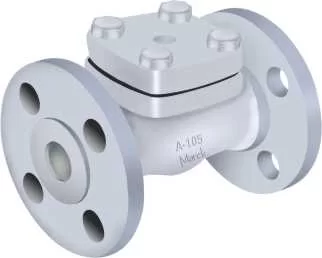

FORGED ALLOY STEEL CHECK VALVE CLASS 150 PISTON LIFT TYPE BOLTED COVER
Product Description
| BODY | COVER | ASTM A 182 Gr F 11 | F 22 |
| TRIMS | 18 Cr 8 Ni | 18 Cr 10 Ni -2MO |
| MFG STD | BS 5352 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
FORGED CARBON STEEL CHECK VALVE CLASS 150 PISTON LIFT TYPE BOLTED COVER
Product Description
| BODY | COVER | ASTM A 105 |
| TRIMS | 18 Cr 8 Ni | 18 Cr 10 Ni -2MO |
| MFG STD | BS 5352 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
FORGED ALLOY STEEL GLOBE VALVE CLASS 150 BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 182 Gr F 11 | F 22 |
| TRIMS | 18 Cr |
| MFG STD | BS 5352 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
FORGED STAINLESS STEEL GLOBE VALVE CLASS 150 BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 182 Gr F 304 | F 316 |
| TRIMS | 18 Cr |
| MFG STD | BS 5352 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |

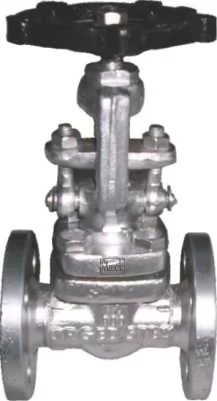

FORGED ALLOY STEEL GATE VALVE CLASS 150 BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 182 Gr F 11 | F 22 |
| TRIMS | 13 Cr |
| MFG STD | API 602 | BS 5352 |
| INSP & TEST STD | API 598 | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
FORGED STAINLESS STEEL GATE VALVE CLASS 150 BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 182 Gr F 304 | F 316 |
| TRIMS | 18 Cr 8 Ni | 18 Cr 10 Ni – 2 MO |
| MFG STD | API 602 | BS 5352 |
| INSP & TEST STD | API 598 | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
FORGED CARBON STEEL GLOBE VALVE CLASS 150 BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 105 |
| TRIMS | 18 Cr |
| MFG STD | BS 5352 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
FORGED CARBON STEEL GATE VALVE CLASS 150 BOLTED BONNET
Product Description
| BODY | BONNET | ASTM A 105 |
| TRIMS | 13 Cr |
| MFG STD | API 602 | BS 5352 |
| INSP & TEST STD | API 598 | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
FORGED STAINLESS STEEL CHECK VALVE CLASS 150 PISTON LIFT TYPE BOLTED COVER
Product Description
| BODY | COVER | ASTM A 182 Gr F 304 | F 316 |
| TRIMS | 18 Cr 8 Ni | 18 Cr 10 Ni -2MO |
| MFG STD | BS 5352 |
| INSP & TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
Y Type Forged Steel Valve
We are #1 Y Type Forged Steel Valve Manufacturers and Suppliers in India.A Y-type forged steel valve is an industrial valve characterized by its Y-shaped body, crafted from forged steel to ensure exceptional strength and durability. These valves are designed to control the flow of fluids such as steam, water, oil, and gas, making them suitable for demanding industries like oil and gas, chemical processing, and power generation. The Y-shaped design helps reduce turbulence and pressure loss, enhancing performance. They come in various pressure ratings and connection types to cater to specific application needs.
FORGED STEEL CLASS 2500 “Y” TYPE WELDED COVER STRAINER
Product Description
| BODY | COVER | ASTM A 105 | F 304 | F 304L | F 316 | F 316L | F 11 | F 22 |
| SCREEN | SS 304 | SS 316 |
| MFG STD | MARCK | 014 |
| INSP & TEST STD | MARCK | 014 |
| ENDS | SOCKET WELD TO ASME B 16.11 | BUTT WELD END |
| HYD-TEST PRESSURE | BODY : 9275 Psig (652 Kg/Cm²) |
| SEAT : 6790 Psig (477 Kg/Cm²) | |
| SIZE RANGE | 15 MM TO 50 MM |

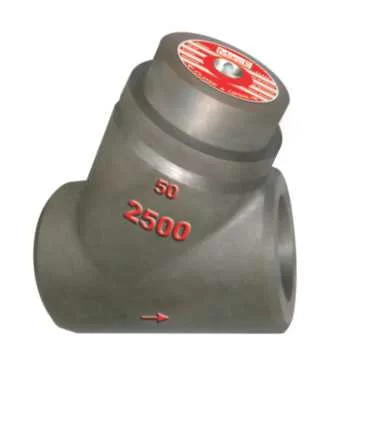

FORGED STEEL CLASS 2500 “Y” TYPE WELDED COVER NON RETURN VALVE
Product Description
| BODY | COVER | ASTM A 105 | F 304 | F 304L | F 316 | F 316L | F 11 | F 22 |
| TRIMS | 13% Cr STEEL | 18% Cr 8% Ni | 18% Cr 10% Ni 2% MO + STELLITE-6 |
| MFG STD | API 602 |
| INSP & TEST STD | API 598 |
| ENDS | SOCKET WELD TO ASME B 16.11 | BUTT WELD END |
| HYD-TEST PRESSURE | BODY : 9275 Psig (652 Kg/Cm ²) |
| SEAT : 6790 Psig (477 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 50 MM |
