Flush Bottom Tank Valve
we’re Flush Bottom Tank Valve Manufacturers in India. It utilized for discharging of processed resources from the bottom portion or perhaps at the outlet of vessels, reactors, tanks, containers etc.
A flush bottom ball valve is an industrial valve specifically designed for installation at the base of a tank or vessel, ensuring complete drainage while preventing the accumulation of solids. Its main attributes include a flush-mounted design that reduces dead space, a sealed ball for leak prevention, and robust construction tailored for demanding industrial environments such as chemical and pharmaceutical processes.

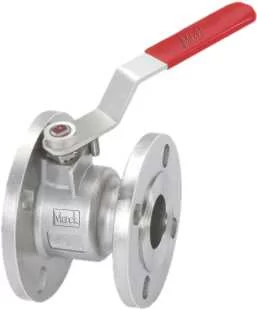

SS FLUSH BOTTOM BALL VALVE FLANGED END
Product Description
| BODY | ASTM A 351 Gr CF8 | CF8M |
| BALL | ASTM A 351 Gr CF8 | CF8M |
| STEM | AISI 304 | AISI 316 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5351 |
| BLOW OUT PROOF STEM | FLOATING BALL FULL BORE |
| TESTING | GENERALLY CONFORMING TO BS 6755 |
| PRESS. TEMP RATING | CONFORM TO TABLE 3 OF BS 5351 |
| LEVER | AISI 304 WITH PVC SLEEVE |
| ENDS | FLANGED TO ASA 150# |
| SIZE RANGE | 50 MM x 50 MM TO 100 MM x 100 MM |
SS FLUSH BOTTOM TANK VALVE FLANGED END OUTSIDE YOKE &SPINDLE TYPE
Product Description
| BODY | ASTM A 351 Gr CF8 | CF8M | CF3M |
| TRIMS | 18 Cr 8 Ni | 18 Cr 10 Ni 2 MO | CF 3M OR AISI 316L |
| MFG STD | MARCK | 020 |
| INSP & TEST STD | MARCK | 020 |
| ENDS | FLANGED TO BS 10 TABLE “F ” |
| FLANGED TO ASME B 16.5 RF (150#) | |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 25 MM TO 100 MM |
