FEP / PFA LINED VALVE
We Are Leading Manufacturers & Supplier Of FEP / PFA Lined Valve In IndiaFEP/PFA lined valves are industrial valves with a corrosion-resistant lining of Fluorinated Ethylene Propylene (FEP) or Perfluoroalkoxy (PFA), making them suitable for handling aggressive, corrosive, or high-purity fluids. They are used in industries like chemical, petrochemical, and pharmaceutical for applications requiring resistance to acids, alkalis, and other harsh media. The lining provides a protective barrier that extends the valve’s life and prevents contamination.

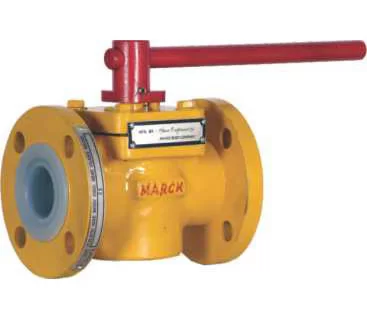

S.G.IRON FEP / PFA LINED PLUG VALVE FLANGED END CLASS 150
Product Description
| BODY | GGG 40 WITH FEP | PFA |
| COVER | GGG 40 |
| PLUG | ASTM A 216 216 Gr WCB + FEP | PFA LINED |
| DIAPHRAGM | PTFE |
| LINING THICKNESS | MINIMUM 3.00 MM TO 4.00 MM |
| OPERATING TEMPERATURE | |
| SPARK TEST | 15 KVDC |
| ENDS | FLANGED TO ASME B 16.5 (150#) |
| HYD-TEST PRESSURE | BODY : 10 Kg/Cm ² |
| SEAT : 10 Kg/Cm ² | |
| SIZE RANGE | 15 MM TO 200 MM |
S.G.IRON FEP / PFA LINED TWO PIECE DESIGN BALL VALVE CLASS 150
Product Description
| BODY | GGG 40 WITH FEP | PFA |
| BALL | ASTM A 216 216 Gr WCB + FEP | PFA LINED |
| STEM | ASTM A 216 216 Gr WCB + FEP | PFA LINED |
| LINING THICKNESS | MINIMUM 3.00 MM TO 4.00 MM |
| OPERATING TEMPERATURE | |
| SPARK TEST | 15 KVDC |
| ENDS | FLANGED TO ASME B 16.5 (150#) |
| HYD-TEST PRESSURE | BODY : 10 Kg/Cm ² |
| SEAT : 10 Kg/Cm ² | |
| SIZE RANGE | 15 MM TO 200 MM |

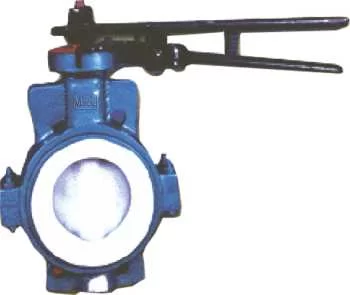

FEP/ PFA LINED VALVE WAFER TYPE BUTTERFLY/S.G.IRON FEP
Product Description
| BODY | GGG 40 |
| DISC | CF8 + PFA | FEP LINED |
| SEAT | PTFE |
| MFG STD | BS 5155 |
| INSP & TEST STD | BS 6755 (PART- II) |
| LINING THICKNESS | MINIMUM 3.00 MM TO 4.00 MM |
| OPERATING TEMPERATURE | |
| SPARK TEST | 10 KVDC |
| ENDS | WAFER TYPE TO SUIT ASME B 16.5 (150#) |
| HYD-TEST PRESSURE | BODY : 07 Kg/Cm ² |
| SEAT : 07 Kg/Cm ² | |
| SIZE RANGE | 40 MM TO 400 MM |
FEP / PFA SLEEVE PLUG VALVE FLANGED END TABLE “E” / CLASS 150
Product Description
| BODY | IS 210 Gr FG 200 | 220 | WCB | AISI 304 | AISI 316 |
| PLUG | AISI 304 | AISI 316 WITH PTFE SLEEVE |
| DIAPHRAGM | PTFE |
| ENDS | FLANGED TABLE “E” | ASA 150# |
| SIZE RANGE | 25 MM TO 150 MM |
S.G.IRON FEP / PFA LINED DIAPHRAGM VALVE FLANGED END CLASS 150
Product Description
| BODY | GGG 40 WITH FEP | PFA LINED |
| BONNET | ASTM A 216 Gr WCB |
| LINING THICKNESS | MINIMUM 3.00 MM TO 4.00 MM |
| OPERATING TEMPERATURE | |
| SPARK TEST | 15 KVDC |
| ENDS | FLANGED TO ASME B 16.5 |
| HYD-TEST PRESSURE | BODY : 10 Kg/Cm ² |
| SEAT : 10 Kg/Cm ² | |
| SIZE RANGE | 25 MM TO 200 MM |
