Two Piece Design
Marck Valve Automation Two piece design Ball Valves are manufacturers and Suppliers in India.
A two-piece ball valve is a widely used on/off control valve consisting of two body sections, usually connected by screws or bolts, allowing easy disassembly for maintenance. These valves are highly versatile, suitable for regulating the flow of liquids and gases, and capable of managing bidirectional flow. They are designed with a rotating ball containing a bore, which opens or closes the valve depending on its position. Operation can be performed manually or automatically.

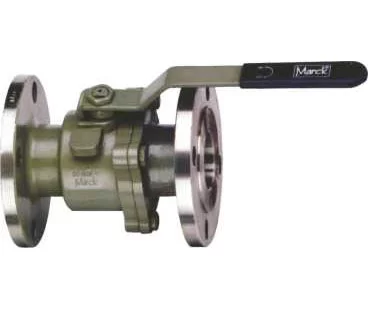

2 PIECE DESIGN FLOATING BALL FULL /REDUCE PORT BALL VALVE CLASS 150/300
Product Description
| BODY | ASTM A 351 Gr CF8 |
| BALL | AISI 304 | ASTM A 351 Gr CF8 |
| STEM | AISI 304 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5351 | ISO 17292 |
| TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 (150#/300#) |
| HYD-TEST PRESSURE | BODY : 1100 Psig (77 Kg/Cm ²) (300#) |
| PNEUMATIC TEST PRESSURE : | SEAT : 100 Psig (7 Kg/Cm ²) |
| SIZE RANGE | 15 MM TO 600 MM |

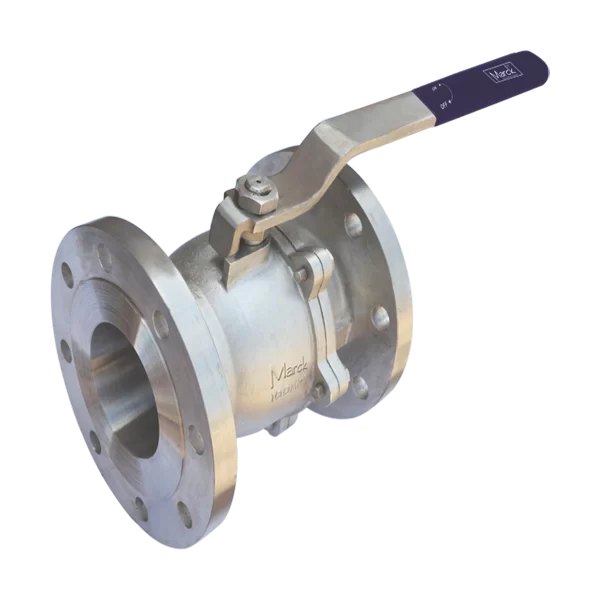

2 PIECE DESIGN FLOATING BALL FULL PORT /REDUCE PORT BALL VALVE CLASS 300
Product Description
| BODY | ASTM A 216 Gr WCB | WC1 | WC6 | WC9 | LCB |
| BALL | AISI 304 | ASTM A 351 Gr CF8 |
| STEM | AISI 304 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5351 | ISO 17292 |
| TEST STD | BS 6755 |
| ENDS | FLANGED TO ASME B 16.5 RF (300#) |
| HYD-TEST PRESSURE | BODY : 1100 Psig (77 Kg/Cm ²) |
| PNEUMATIC TEST PRESSURE : | SEAT : 100 Psig (7 Kg /Cm ²) |
| SIZE RANGE | 15 MM TO 600 MM |
