Single Piece Design
Marck Valve Automation single piece design Ball Valves are manufacturers and Suppliers in India.
Single–piece design can encompass several ideas. Most commonly, it refers to a seamless, single–molded component, such as a ball valve. It can also describe a one-piece garment, such as a dress or swimsuit. Additionally, the term is associated with single-piece production flow in manufacturing, where items are processed individually in sequence. Lastly, it may pertain to specific patterns used in metal casting.

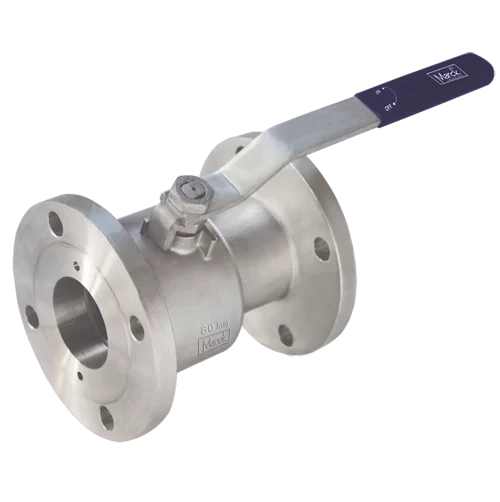

SS 316 SINGLE PIECE DESIGN BALL VALVE F/E CLASS 150 FLOATING BALL FULL PORT
Product Description
| BODY | AISI 304 | AISI 316 |
| BALL | AISI 304 | AISI 316 | ASTM 351 Gr CF8M |
| STEM | AISI 304 | AISI 316 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5351 |
| TESTING | BS 6755 |
| PORT | FULL BORE | REDUCE BORE |
| ENDS | FLANGED TO BS 10 TABLE “F ” |
| FLANGED TO ASME B 16.5 RF (150#) | |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 100 MM |

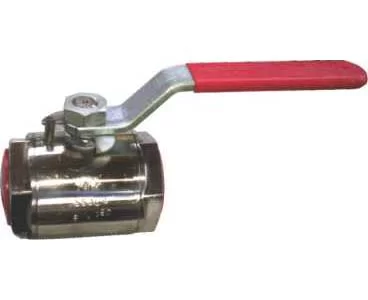

SS 316 SINGLE PIECE DESIGN BALL VALVE S/E &S/W CLASS 150 FLOATING BALL FULL PORT
Product Description
| BODY | AISI 304 | AISI 316 |
| BALL | AISI 304 | AISI 316 | ASTM A 351 Gr CF8M |
| STEM | AISI 304 | AISI 316 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5351 |
| TESTING | BS 6755 |
| ENDS | SCREWED TO BSP | BSPT | NPT |
| SOCKET WELD ENDS TO ASME B 16.11 | |
| HYD-TEST PRESSURE | BODY : 425 Psig (30 Kg/Cm ²) |
| SEAT : 300 Psig (21 Kg/Cm ²) | |
| SIZE RANGE | 8 MM TO 50 MM |

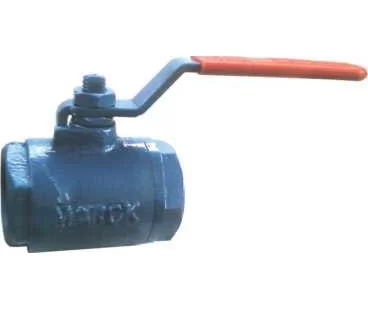

SINGLE PIECE DESIGN BALL VALVE S/E &F/E CLASS 125 FLOATING BALL FULL PORT
Product Description
| BODY | IS 210 Gr FG 200 | 220 |
| BALL | AISI 304 | ASTM A 351 Gr CF8 |
| STEM | AISI 304 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5159 |
| TESTING | BS 6755 | BS 5159 |
| ENDS | SCREWED TO BSP | BSPT | NPT |
| FLANGED TO BS 10 TABLE “F ” | |
| HYD-TEST PRESSURE | BODY : 225 Psig (16 Kg/Cm ²) |
| SEAT : 165 Psig (11.5 Kg/Cm ²) | |
| SIZE RANGE | 15 MM TO 100 MM |

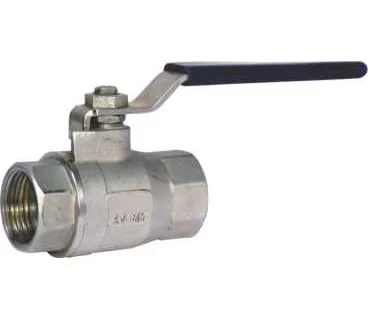

SS INVESTMENT CASTING SINGLE PIECE DESIGN BALL VALVE
Product Description
| BODY | ASTM A 351 Gr CF8 | CF8M | CF3 | CF3M |
| BALL | ASTM A 351 Gr CF8 | CF8M | CF3 | CF3M |
| STEM | AISI 304 | AISI 316 |
| SEAT & SEALS | PTFE |
| MFG STD | GENERALLY CONFORMING TO BS 5351 | ISO 17292 |
| BLOW OUT PROOF STEM | FLOATING BALL FULL BORE |
| TESTING | BS 6755 |
| ENDS | SCREWED TO BSP | BSPT | NPT | IS 554 |
| SOCKET WELD TO ASME B 16.11 | |
| SIZE RANGE | 8 MM TO 100 MM |
