Air Valve
Marck Valve Automation is Air Valve Manufactures in India. It hydromechanical gadgets developed to immediately release air as well as wastewater gases or perhaps acknowledge atmosphere during the filling, emptying or perhaps operation of liquid piping methods for water as well as wastewater services.
TAMPER PROOF AIR VALVE
Product Description
| BODY COVER COWL | CAST IRON, DUCTILE IRON, CAST IRON |
| SEAT RING | NITRILE | EPDM |
| SMALL ORIFICE NIPPLE | BRONZE (STANDARD) | STAINLESS STEEL |
| SMALL ORIFICE BALL | STAINLESS STEEL (STANDARD) | RUBBER LINED SEASONED TIMBER |
| MFG STD | IS 14845 | MARCK 016 |
| MAX. C.W.P | PN 10 | PN 1.6 |
| ENDS | FLANGED END TO IS 1538 | ASME B 16.5 |
| HYD-TEST PRESSURE | BODY : 225 PSIG (15 KG/CM²) |
| SEAT : 165 PSIG (11.5 KG/CM²) | |
| SIZE RANGE | 50 MM TO 200 MM |
KINETIC DOUBLE AIR VALVE (H-42K)
Product Description
| BODY | IS 210 Gr FG 200 |
| BALL | NEOPRENE COATED TIMBER |
| MFG STD | MARCK | 016 |
| TESTING | MARCK | 016 |
| MAX. C.W.P | 100 Psig (7 Kg/Cm²) |
| ENDS | FLANGED TO BS 10 TABLE “D” |
| FLANGED TO ASME B 16.1 FF (125#) | |
| HYD-TEST PRESSURE | BODY : 225 Psig (16 Kg/Cm²) |
| SIZE RANGE | 25 MM TO 200 MM |
DOUBLE AIR VALVE (H-7K)
Product Description
| BODY | IS 210 Gr FG 200 |
| TRIMS | STAINLESS STEEL | GUN METAL |
| BALL | NEOPRENE COATED TIMBER |
| MFG STD | MARCK | 016 |
| TESTING | MARCK | 016 |
| MAX. C.W.P | 100 Psig (7 Kg/Cm²) |
| ENDS | FLANGED TO BS 10 TABLE “D” |
| FLANDED TO ASME B 16.1 FF (125#) | |
| HYD-TEST PRESSURE | BODY : 225 Psig (16 Kg/Cm²) |
| SIZE RANGE | 40 MM to 200 MM |
DOUBLE AIR VALVE (H-40)
Product Description
| BODY | IS 210 Gr FG 200 |
| TRIMS | AISI 410 |
| BALL | NEOPRENE COATED TIMBER |
| MFG STD | MARCK | 016 |
| TESTING | MARCK | 016 |
| MAX. C.W.P | 100 Psig (7 Kg/Cm²) |
| ENDS | FLANGED TO BS 10 TABLE “D” |
| FLANGED TO ASME B 16.1 FF (125#) | |
| HYD-TEST PRESSURE | BODY : 225 Psig (16 Kg/Cm²) |
| SEAT : 165 Psig (11.5 Kg/Cm²) | |
| SIZE RANGE | 25 MM TO 250 MM |
DOUBLE AIR VALVE (H-7)
Product Description
| BODY | IS 210 Gr FG 200 |
| BALL | NEOPRENE COATED TIMBER |
| MFG STD | MARCK | 016 |
| TESTING | MARCK | 016 |
| MAX. C.W.P | 100 Psig (7 Kg/Cm²) |
| ENDS | FLANGED TO BS 10 TABLE “D” |
| FLANGED TO ASME B 16.1 FF (125#) | |
| HYD-TEST PRESSURE | BODY : 225 Psig (16 Kg/Cm²) |
| SIZE RANGE | 25 MM TO 300 MM |

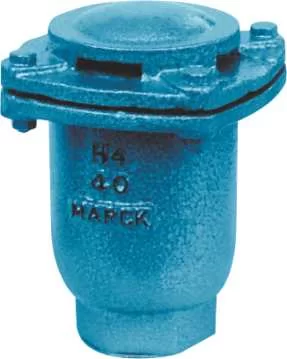

SINGLE AIR VALVE (H-4)
Product Description
| BODY | IS 210 Gr FG 200 |
| BALL | NEOPRENE COATED TIMBER |
| MFG STD | MARCK | 016 |
| TESTING | MARCK | 016 |
| MAX. C.W.P | 100 Psig (7 Kg/Cm²) |
| ENDS | SCREWED TO BSP |
| HYD-TEST PRESSURE | BODY : 225 Psig (16 Kg/Cm²) |
| SIZE RANGE | 15 MM TO 100 MM |
